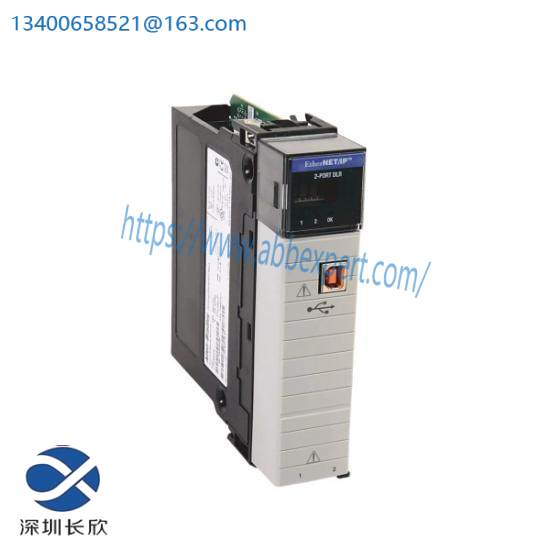

Allen-Bradley 1756-EN3TR/A ControlLogix Ethernet Motion Module

Model Type:Ethernet Motion Module

Manufacturer:Allen Bradley / Rockwell Automation

Module Number:1756-EN3TR/A

Communication Protocol:EtherNet/IP

Motion Control Compatibility:Up to 32 motors

Speed Range:1 to 2000 RPM

Resolution:0.001 degree

Current Capacity:Max 3A @ 24VDC

Operating Temperature:-20°C to 60°C

Enclosure Type:IP20 Open

Power Supply:120VAC / 230VAC

Connectivity Options:Ethernet, USB

Network Support:ControlNet, EtherNet/IP

Mounting:Panel or Chassis

Isolation:30V DC continuous

    Integrating cutting-edge motion control technology, the Allen Bradley 1756-EN3TR/A ControlLogix Ethernet Motion Module is designed to deliver unparalleled performance in high-demand industrial settings. Its robust Ethernet interface ensures seamless connectivity within complex automation systems, facilitating efficient data exchange and control over motors and drives.

    Equipped with advanced diagnostics, this module offers real-time monitoring and predictive maintenance capabilities, significantly reducing downtime and enhancing operational efficiency. It supports a wide array of motion control protocols, including Direct Drive, Variable Frequency Drives, and integrates seamlessly with ControlLogix and other Allen Bradley products for a cohesive automation solution.

    With its broad temperature range and high power efficiency, the 1756-EN3TR/A is ideal for environments where reliability and performance are paramount. Its compact yet sturdy design allows for easy installation on the panel, minimizing space requirements while maximizing functionality.

    This module is specifically tailored for applications requiring precise motion control, such as robotic systems, material handling, and manufacturing processes. Its compatibility with EtherNet/IP, DeviceNet, and ControlNet networks ensures it can be integrated into virtually any modern industrial automation infrastructure.

    To maximize productivity and minimize costs, the Allen Bradley 1756-EN3TR/A ControlLogix Ethernet Motion Module offers comprehensive support, including detailed documentation, online resources, and direct access to technical experts through Allen Bradley’s extensive network of partners and distributors.
